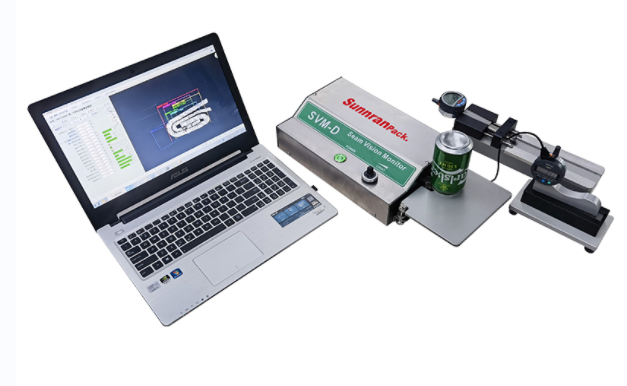

Seam Vision Monitor SVM-D ,Can Quality Inspection Equipment with imagel local magnification function,Sunnranpack

Name: Seam Vision Monitor SVMD Can Quality Inspection Equipment with imagel local magnification functionSunnranpack
Brand: sunnranpack
Price: 1 USD

China Seam Vision Monitor SVM-D ,Can Quality Inspection Equipment with imagel local magnification function,Sunnranpack wholesale

Model Number : SVM-D

Place of Origin : Made in China

MOQ : 1SET

Delivery Time : 60 WORD DAYS

Brand Name : sunnranpack

Price : EXW

Packaging Details : WOODEN

Product Name : Seam Vision Monitor

Accuracy : 0.005mm

Degree : 0.001mm

Application : 2pcs can,3pcs can

Magnification : 60 Times

selected point magnification : 180 times

Size : 370*210*147mm

Type : Inspection Equipment

Weight : 7.3KG

Contact Now

Seam Vision Monitor SVM-D ,Can Quality Inspection Equipment with imagel local magnification function,Sunnranpack

Name	Seam Vision Monitor	自动卷边投影仪
Type	SVM- D
Technical parameters:
精度 accuracy:	0.005 mm
分度 degree:	0.001 mm
适用样品applicable samples:	three-piece cans, two-piece cans
放大倍数Magnification:	60 times
选点放大倍数selected point magnification:	180 times
size:	370 x 210 x 147 mm
weight:	7.3 kg

Instrument features:

●the use of advanced optical lens, free from external light interference, to ensure image clarity.

● image local magnification function, so that the measurement point more accurate.

Seam Vision Monitor SVM-D ,Can Quality Inspection Equipment with imagel local magnification function,Sunnranpack

●9 inspection items:

the length of the coil,

the length of the hook of the tank body,

the length of the hook of the tank cover,

the length of the overlap,

the length of the gap between the coil,

the overlap rate,

the percentage of the hook of the tank body,

the percentage of the hook of the tank cover,

the thickness of the edge of the image.

●The curling section image can be saved for future call.

● the measurement results can be output in PDF form. :

●pre-defined test criteria, each measurement can automatically judge and warn whether the measurement results are qualified.

●Can Store or print curling section images without retaining sample jars.

● equipped with special calibration block, the user can calibrate the instrument at any time.

● the upper and lower position and angle of the platform are adjustable.
